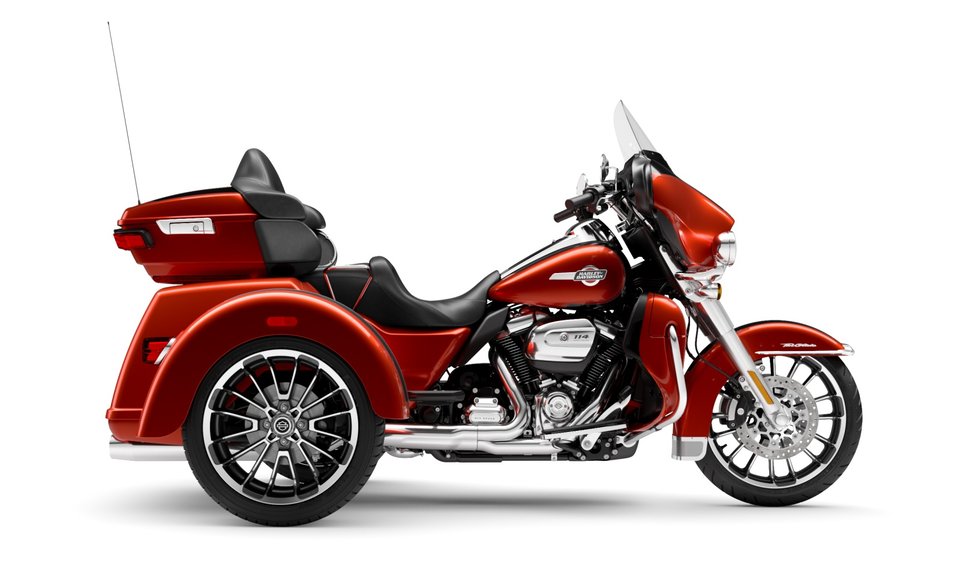

A full-dresser, long-haul trike with room for cargo, the Tri Glide Ultra is available in classic chrome or all-new dark finishes. Load up the trunk and King Tour-Pak® luggage carrier with amenities for days on the road and enjoy the comfort and confidence of three-wheels on your greatest adventures.
Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
| Base MSRP | $37,999.00 |
| Vivid Black | $850.00 |
| Premium Solids | $1,200.00 |
| Two-Tone | $2,000.00 |
| Custom Color | $2,800.00 |
| Black Trim Option | $1,100.00 |
| California Emissions | $200.00 |
| Freight | $1,375.00 |
| Length | 105.1 in |
| Seat height, unladen | 28.9 in |
| Ground clearance | 4.9 in |
| Rake (steering head) | 26 |
| Trail | 4 in |
| Wheelbase | 65.7 in |
| Tires, front specifications | MT 130/60B19 M/C 61H |
| Fuel Capacity | 6 gal |
| Oil capacity | 5 qt. |
| Weight, as shipped | 1,199 lbs |
| Weight, in running order | 1237 lb |
| Luggage capacity – volume | 6.8 cu ft (0.19 m3) |
| Tire, type | 1Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear |
| Engine | Twin-Cooled™ Milwaukee-Eight® 114 |
| Bore | 4 in |
| Stroke | 4.5 in |
| Displacement | 113.99 in3 |
| Compression ratio | 10.5:1 |
| Fuel system | Electronic Sequential Port Fuel Injection (ESPFI) |
| Exhaust | 2-1-2 dual exhaust with tapered mufflers |
| Engine torque testing method | J1349 |
| Engine torque | 120.2 ft-lb |
| Engine torque (RPM) | 2500 |
| Horsepower | 93 HP / 69 kW @ 5020 rpm |
| Fuel economy testing method | Estimated City/Hwy |
| Fuel economy | 42 mpg (5.6 l/100km) |
| Primary drive | Chain, 34/46 ratio |
| Gear ratios (overall) 1st | 10.534 |
| Gear ratios (overall) 2nd | 7.302 |
| Gear ratios (overall) 3rd | 5.423 |
| Gear ratios (overall) 4th | 4.392 |
| Gear ratios (overall) 5th | 3.741 |
| Gear Ratios (overall) 6th | 3.157 |
| Front fork | 1.9 in. dual bending valve |
| Rear shocks | Hand-adjustable emulsion rear suspension |
| Wheels, front type | Black, 7-spoke Cast Aluminum |
| Wheels, rear type | Black, 7-spoke Cast Aluminum |
| Brakes, type | Dual floating rotors (front), fixed rotor (rear) |
| Brakes, caliper type | Front: 1.3 in. piston fixed, Rear: floating 1.4 in. piston integrated park brake |
| Infotainment system | Boom!™ Box GTS |
| Type | Full Color TFT |
| Watts per channel | 25 |
| Speakers | 4 |
| Speaker size | 5.25 inch |
| Headset specifications (if equipped) | 16 – 64 ohms |
| AM | Standard |
| FM | Standard |
| Weather Band (WB) | Standard |
| SD Card, Flash Drive and MP3 — via USB Connection | Supported |
| Languages | English (US/UK) German Spanish (Mexico/Spain) French (Canada/France) Italian Portuguese (Portugal/Brazil) Russian Czech Polish Dutch Turkish Japanese Korean Chinese (Simplified) Siamese (Thai) Bahasa (Indonesian) Arabic |
| Hands-free mobile phone — via Bluetooth | Standard |
| Voice Recognition Languages: Phone functions only | Phone dependent |
| Voice Recognition Languages: Tuner / Media / Navigation | Phone dependent |
| Text-to-Speech (TTS) languages | Phone dependent |
| Rider / passenger intercom | Standard (Passenger Headset Sold Separately) |
| Vehicle information screen | Standard |
| USB | USB/MTP/iPod/iPhone |
| Bluetooth | Phone/Media Supported |
| Billiard Gray | |
| Vivid Black | |
| Iron Horse Metallic / Vivid Black | |
| Whiskey Fire / Vivid Black | |
| Billiard Gray – Black Finish | |
| Vivid Black – Black Finish | |
| Atlas Silver Metallic – Black Finish | |
| Whiskey Fire / Vivid Black – Black Finish | |
| Iron Horse Metallic / Vivid Black – Black Finish | |
| Mystic Shift – Black Finish |
