Pan America 1250 Special - Colonial Harley-Davidson®

2025

Pan America® 1250 Special

2025 Pan America® 1250 Special

Go anywhere and everywhere on the Pan America 1250 Special, with high-revving liquid-cooled V-twin power, semi-active suspension, and top-shelf components engineered to endure and explore.

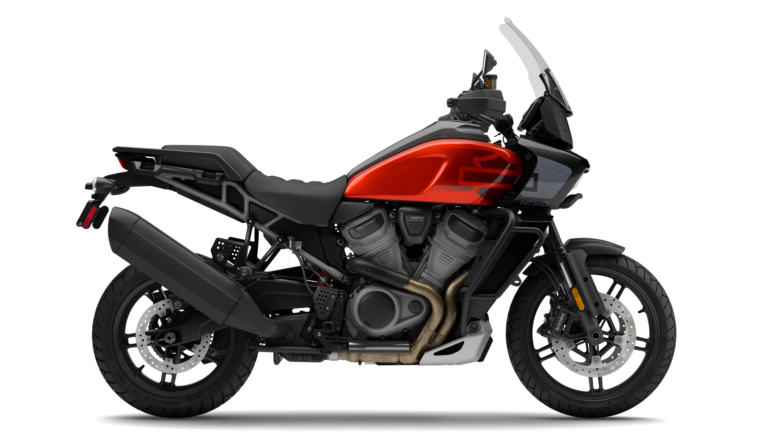

Whiskey Fire / Raven Metallic w/Cast Wheels — 0f2236b7f0af53685827a38a9b72ea25_82a6d965f4e574de

Whiskey Fire / Raven Metallic w/Laced Wheels

Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.

Key Features

A high-revving, liquid-cooled V-twin puts out 150 horsepower with a wide, flexible powerband, and tunable on- and off-road Traction Control means that you get power to the ground, no matter what that ground looks like.

Battery charging at idle is now more efficient, and a larger battery enhances cold starts and provides extra power for accessories.

Nine selectable ride modes, including Road, Sport, Rain, Off-Road, and Off-Road Plus, tune performance and technology levels, enhancing your confidence and control both on and off the pavement.

Adaptive Ride Height automatically adjusts the seat height as you ride, lowering at stops for easy footing and raising at speed for optimal ground clearance and comfort.

Brembo brakes, front and rear, provide excellent feeling and incredible stopping power, paired with Cornering Rider Safety Enhancements that are tunable for on- and off-road riding.

The Adaptive Daymaker® headlight casts a broad, pure white light, ensuring your ride continues well after dark. With lean angle-controlled bank lighting, its 12 LED spotlights adjust to the bike’s lean, providing curb-to-curb visibility and enhancing your view through corners.

Specifications

Pricing

Base MSRP	$19,999.00
Vivid Black	$300.00
Premium Solids	$550.00
Two-Tone	$650.00
Wheel Option	$1,000.00
California Emissions	$200.00
Freight	$730.00
Adaptive Ride Height	$1,200.00

Dimensions

Length	89.4 in
Ground clearance	6.9 in
Rake (steering head)	25
Trail	4.3 in
Wheelbase	62.4 in
Tires, front specifications	120/70R19 60V
Tires, rear specifications	170/60R17 72V
Fuel Capacity	5.6 gal
Oil capacity	4.75 qt.
Weight, as shipped	534 lbs
Weight, in running order	569 lb

Engine

Engine	Revolution® Max 1250
Bore	4.1 in
Stroke	2.8 in
Displacement	76.40 in³
Compression ratio	13.0:1
Fuel system	Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust	2-into-1-into-1; catalyst in header

Performance

Engine torque testing method	J1349
Engine torque	95.1 ft-lb
Engine torque (RPM)	6750
Lean angle, right (deg.)	42
Lean angle, left (deg.)	42
Fuel economy testing method	Estimated City/Hwy
Fuel economy	46 mpg (5.1 l/100 km)

Powertrain

Primary drive	Gear, 49/89 ratio
Gear ratios (overall) 1st	13.11
Gear ratios (overall) 2nd	9.687
Gear ratios (overall) 3rd	7.509
Gear ratios (overall) 4th	6.057
Gear ratios (overall) 5th	5.08
Gear Ratios (overall) 6th	4.436

Chassis

Front fork

47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps
Rear shocks

Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping
Wheels, optional style type

Annodized aluminum tubeless laced
Wheels, front type

Aluminum cast, satin black
Wheels, rear type

Aluminum cast, satin black
Brakes, type

Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor
Brakes, caliper type

Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper
ABS

Standard

Infotainment

Type	Color TFT w/ Touch
Headset specifications (if equipped)	Bluetooth
Hands-free mobile phone — via Bluetooth	Standard
Voice Recognition Languages: Phone functions only	Phone dependent
Voice Recognition Languages: Tuner / Media / Navigation	Phone dependent
Text-to-Speech (TTS) languages	Phone dependent
Rider / passenger intercom	Headset function only
Vehicle information screen	TPMS, Engine temp, Battery Voltage, Ambient Air Temp
USB	Charging and Instrument update, USB-C, 5V, 3A
Bluetooth	Phone/Media Supported

Color Options

Billiard Gray w/Cast Wheels

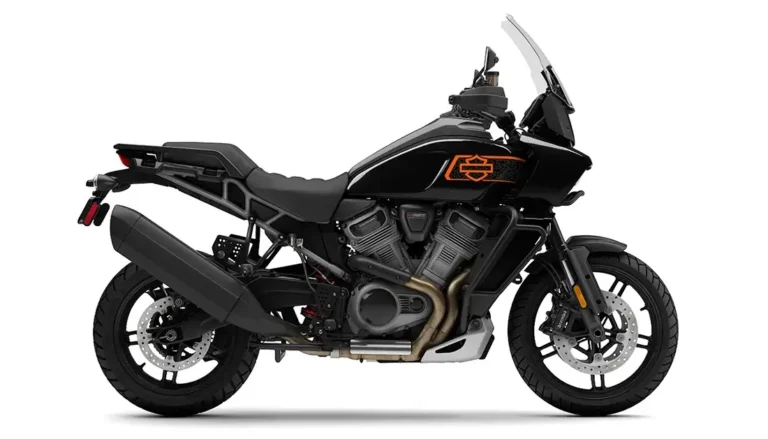

Vivid Black w/Cast Wheels
Blue Burst w/Cast Wheels
Whiskey Fire / Raven Metallic w/Cast Wheels
Billiard Gray w/Laced Wheels
Vivid Black w/Laced Wheels
Blue Burst w/Laced Wheels
Whiskey Fire / Raven Metallic w/Laced Wheels
