2026 Pan America 1250 Limited
The 2026 Pan America 1250 Limited steps up with new SW-MOTECH aluminum luggage, fresh paint and graphics, and refined finishes on the Revolution® Max 1250 motor for a sharper, classic look. Standard tubeless laced wheels, Adaptive Ride Height, and a Screamin’ Eagle® Quickshifter bring confidence and control when the ground gets unpredictable, while factory-installed guarding and auxiliary lighting make it a true turn-key adventure machine. It’s fully equipped, straight from the factory, and itching to get dirty.
Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Key Features
Specifications
Pricing
| Base MSRP | $26,499.00 |
| Solid Color (LV2) | $700.00 |
| California Emissions | $200.00 |
| Freight | $730.00 |
Dimensions
| Length | 92.3 in |
| Rake (steering head) | 25 |
| Wheelbase | 62.2 in |
| Tires, front specifications | 120/70R19 60V |
| Tires, rear specifications | 170/60R17 72V |
| Oil capacity | 4.75 qt. |
| Weight, as shipped | 626 lbs |
| Weight, in running order | 661 lb |
| Luggage capacity – volume | 4.24 cu ft (0.12 m3) |
Engine
| Engine | Revolution® Max 1250 |
| Bore | 4.1 in |
| Stroke | 2.8 in |
| Displacement | 76.40 in3 |
| Compression ratio | 13.0:1 |
| Fuel system | Electronic Sequential Port Fuel Injection (ESPFI) |
| Exhaust | 2-into-1-into-1; catalyst in header |
Performance
| Engine torque testing method | J1349 |
| Engine torque | 93.7 ft-lb |
| Engine torque (RPM) | 6750 |
| Horsepower | 150 HP / 112 kW @ 8750 rpm |
| Fuel economy testing method | Estimated City/Hwy |
| Fuel economy | 46 mpg (5.1 l/100 km) |
Powertrain
| Primary drive | Chain, 19/48 ratio |
| Gear ratios (overall) 1st | 13.11 |
| Gear ratios (overall) 2nd | 9.687 |
| Gear ratios (overall) 3rd | 7.509 |
| Gear ratios (overall) 4th | 6.057 |
| Gear ratios (overall) 5th | 5.08 |
| Gear ratios (overall) 6th | 4.436 |
Chassis
| Front fork | 1.9 in inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps |
| Rear shocks | Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping |
| Wheels, front type | Aluminum cast, satin black |
| Wheels, rear type | Aluminum cast, satin black |
| Brakes, type | Front: dual rotor, floating, tower-mounted; Rear: solid uniform expansion rotor |
| Brakes, caliper type | Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper |
Infotainment
| Type | Color TFT w/ Touch |
| Headset specifications (if equipped) | Bluetooth |
| Languages | Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Portugal/Brazil), Indonesian, Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish & Vietnamese |
| Hands-free mobile phone — via Bluetooth | Standard |
| Voice Recognition Languages: Phone functions only | Phone dependent |
| Voice Recognition Languages: Tuner / Media / Navigation | Phone dependent |
| Text-to-Speech (TTS) languages | Phone dependent |
| Vehicle information screen | TPMS, Engine temp, Battery Voltage, Ambient Air Temp |
| USB | Charging and Instrument update, USB-C, 5V, 3A |
| Bluetooth | Phone/Media Supported |
Color Options

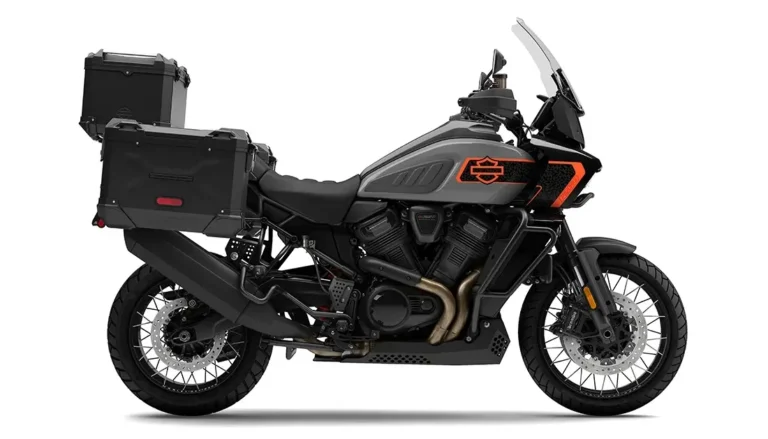

| Dark Billiard Gray |

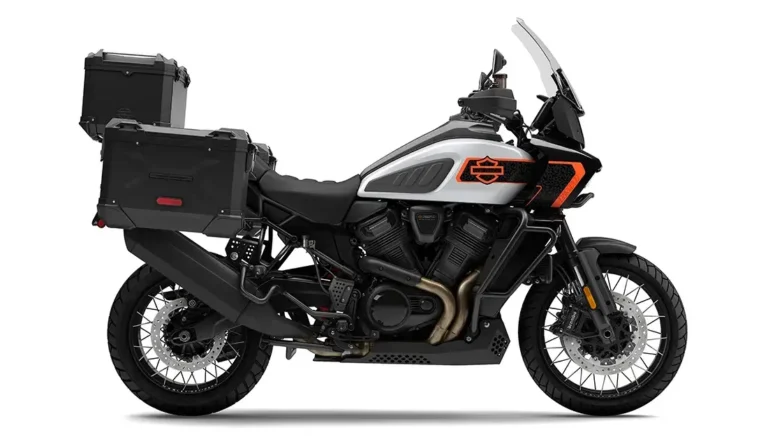

| White Onyx Pearl |
| Olive Steel Metallic |
- Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Attention: Vehicles in the configurations shown and many of the accessories described in this catalog may not be available for sale or use in some locations. Please check with your dealer for complete product details and the latest information. All models feature 6-speed transmission (VRSC™ models and Sportster® models are 5-speed) and carbon fiber belt final drive; multi-plate clutch with diaphragm spring in oil bath; and 2-year unlimited mileage warranty.
- Measurement reflects 180 lb. (81.7 kg) operator weight.
- Recommended 91 octane or higher fuel (R+M)/2.
- Standard and optional wheels may vary by country and region.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- Inspections of certain systems and components are required at 2,500 mile (4,000 km) intervals. See Owner’s Manual for full details.
- 49-state only. Prices listed are the Manufacturer’s Suggested Retail Prices. Other options are available at additional cost. Prices exclude dealer setup, taxes, title and licensing and are subject to change. Dealer prices may vary.
- Limited availability. See your dealer for details and available colors.
- North America security system includes immobilizer; outside North America the security system includes immobilizer and siren.
- Freight price applies to the 48 contiguous states and Alaska only.
- Availability of colors may vary from dealer to dealer, and is subject to change without notice. Custom Color options have limited availability. See your dealer for details and available colors.
