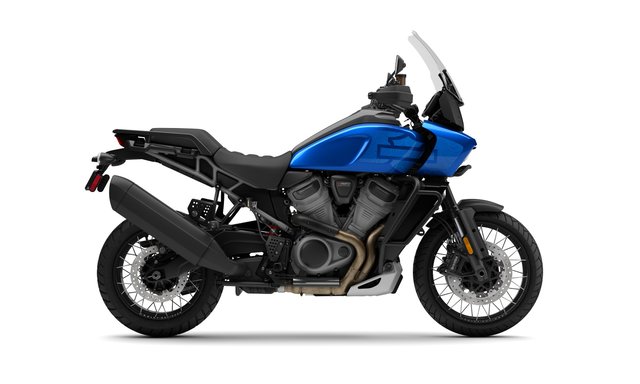

PAN AMERICA 1250 SPECIAL

SEE THE UNSEEN.

The 2025 Harley-Davidson® models represent the future of motorcycling. With upgraded engine performance, cutting-edge safety features, and state-of-the-art technology, this year’s lineup pushes the boundaries of what’s possible on two and three wheels.

Where touring becomes detouring, and everything is a road. The Pan America™ 1250 Special motorcycle is our premier two-wheel multi-tool built to endure, designed to explore, and engineered for adventure. We are calling it Special for a good reason. Designed to meet the demands of both on- and off-road Adventure Touring, the Harley-Davidson® Pan America 1250 Special is engineered to explore and endure, no matter what turns you take.

FEATURES:
• Upright riding position.
• Mid-mount foot controls.
• Passenger seat.
• Frame-mounted fairing.

REVOLUTION® MAX ENGINE
Up for any adventure with a high-revving, high-horsepower Revolution® Max 1250 V-twin engine, top-shelf braking and suspension components, and a tunable suite of tech working quietly in the background.

ADAPTIVE SUSPENSION
Adaptive Ride Height allows you to lower the seat height when stopped, and it also maintains a constant, optimum suspension sag by continuously adjusting preload.

RIDE MODES
Integrated technologies do not overshadow the riding experience, they enhance it: Adaptive Ride Height, Rider Safety Enhancements, Bluetooth® audio, and much more.

COLOR OPTIONS:
• Billiard Gray with Black Trim
• Vivid Black with Black Trim
• Blue Burst with Black Trim
• Whiskey Fire / Raven Mettalic with Black Trim

WHEEL OPTIONS:
• Laced
• Cast

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings, and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson may make changes at any time to prices and specifications and may change or discontinue models, without notice and without incurring any obligation. Please check with your dealer for complete product details and the latest information.

DIMENSIONS:|Length:89.4 in. (2,270 mm)|Width:38.4 in.|Seat Height, Laden:Llow/High Seat Position; 31.1 in./32 in.|Ground Clearance:6.9 in.|Rake:25|Trail:4.3 in. (108 mm)|Wheelbase:62.4 in. (1,585 mm)|Tire, Type:Michelin® Scorcher “Adventure”, Radial|Tires, Front Specification:120/70R19 60V|Tires, Rear Specification:170/60R17 72V|Fuel Capacity:5.6 gal. (21.2 l)|Oil Capacity (w/filter):4.75 qt. (4.5 l)|Weight, In Running Order:569 lb. (258 kg)|ENGINE:|Engine Type:Revolution® Max 1250|Bore x Stroke:4.134 in. (105 mm) x 2.846 in. (72.3 mm)|Displacement:76.4 cu in (1,252 cc)|Compression Ratio:13 to 1|Fuel System:Electronic Sequential Port Fuel Injection (ESPFI)|Exhaust:2-into-1-into-1; catalyst in header|CHASSIS:|Front Fork:47mm inverted fork with electronically adjustable semi-active damping control. Aluminum fork triple clamps|Rear Shocks:Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping|Wheels, Optional Style Type:Laced|Wheels, Front Type:Aluminum cast, satin black|Wheels, Rear Type:Aluminum cast, satin black|Brakes, Caliper Type – Front:Radially mounted, monoblock, 4-piston caliper|Brakes, Caliper Type – Rear:Floating, single piston caliper|PERFORMANCE:|Engine Torque Testing Method:J1349|Engine Torque:94 ft-lb (127 Nm)|Engine Torque (rpm):6,750|Horsepower:150 HP / 112 kW @ 8750 rpm|Lean Angle, Right (Deg.):42|Lean Angle, Left (Deg.):42|Fuel Economy Testing Method:Estimated City/Hwy|Fuel Economy:46 mpg (5.1 l/100 km)|
