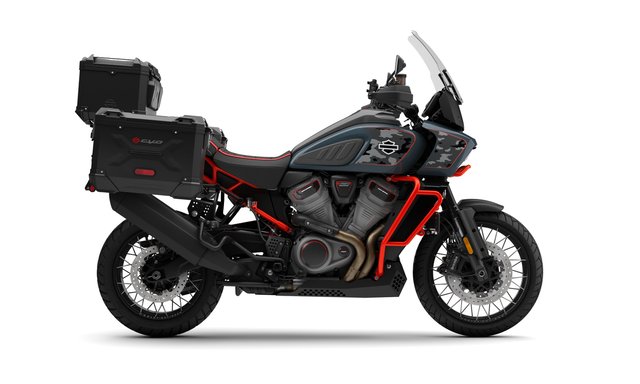

CVO PAN AMERICA

DESIGNED FOR ADVENTURE.

The 2025 Harley-Davidson® models represent the future of motorcycling. With upgraded engine performance, cutting-edge safety features, and state-of-the-art technology, this year’s lineup pushes the boundaries of what’s possible on two and three wheels.

Where touring becomes detouring, and everything is a road. The Pan America® motorcycle is our premier two-wheel multi-tool built to endure, designed to explore, and engineered for adventure. Designed to meet the demands of both on- and off-road Adventure Touring, the Harley-Davidson® CVO™ Pan America® is engineered to explore and endure, no matter what turns you take.

FEATURES:
• Upright riding position.
• Mid-mount foot controls.
• Passenger seat.
• Frame-mounted fairing.
• Adaptive Ride Height.

REVOLUTION® MAX 1250 ENGINE
A liquid-cooled powertrain delivers 150 horsepower, instant torque, and a surging powerband tuned to maximize rider control.

REVOLUTIONARY SUSPENSION
The semi-active suspension system dynamically adjusts damping based on position, vehicle speed, vertical acceleration, roll angle, throttle, brake inputs, and the selected Ride Mode to get the most from your adventure, wherever it takes you.

ADAPTIVE RIDE HEIGHT
This system not only lowers seat height when stopped but also maintains a constant, optimum suspension sag at speed by continuously monitoring inputs and adjusting preload.

LUGGAGE
Designed in collaboration with SW-MOTECH®, this rugged aluminum luggage is built to withstand the rigor of hardcore adventure riding.

ADVENTURE DUFFLE
This durable, waterproof duffle bag can hold up to 2,440 cubic inches of adventure essentials and easily attaches to and detaches from the bike.

PREMIUM PAINT
Carbon Blue paint has a subtle metallic effect with a gray camo background and bright silver Bar & Shield logo. Legendary Orange accents on the subframe and radiator guard are complemented by distinct orange CVO detailing from grips to seat to luggage.

COLOR OPTION:
• Carbon Blue with Black Trim

Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings, and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson® may make changes at any time to prices and specifications and may change or discontinue models, without notice and without incurring any obligation. Please check with your dealer for complete product details and the latest information.

DIMENSIONS:|Length:92.3 in. (2,345 mm)|Overall Width:43.1 in. (1,095 mm)|Seat Height, Laden:30.4 in.|Rake:25|Trail:4.3 in. (108 mm)|Wheelbase:62.4 in. (1,585 mm)|Tires, Type:Michelin®Scorcher “Adventure”, Radial|Tires, Front Specification:120/70R19 60V|Tires, Rear Specification:170/60R17 72V|Fuel Capacity:5.6 gal. (21.2 l)|Oil Capacity (w/filter):4.75 qt. (4.5 l)|Weight, In Running Order:659 lb. (299 kg)|ENGINE:|Engine Type:Revolution® Max 1250|Bore x Stroke:4.134 in. (105 mm) x 2.846 in. (72.3 mm)|Displacement:76.4 cu in (1,252 cc)|Compression Ratio:13 to 1|Fuel System:Electronic Sequential Port Fuel Injection (ESPFI)|Exhaust:2-into-1-into-1; catalyst in header|CHASSIS:|Front Fork:47mm inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH). Aluminum fork triple clamps|Rear Shocks:Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping and Adaptive Ride Height (ARH)|Wheels, Optional Style Type:N/A|Wheels, Type:Annodized aluminum tubeless laced|Brakes, Caliper Type – Front:Radially mounted, monoblock, 4-piston caliper|Brakes, Caliper Type – Rear:Floating, single piston caliper|Brakes, Rotor Type:Front – dual rotor, floating, tower- mounted; Rear – solid uniform expansion rotor|Brakes, Anti-Lock Braking System (ABS):Standard|PERFORMANCE:|Engine Torque Testing Method:J1349|Engine Torque:95 ft-lb (129 Nm)|Engine Torque (rpm):6,750|Engine Power (Hp/kW):150 HP / 112 kW @ 8750 rpm|Lean Angle, Right (Deg.):42|Lean Angle, Left (Deg.):42|Fuel Economy Testing Method:Estimated City/Hwy|Fuel Economy:46 mpg (5.1 l/100 km)|
