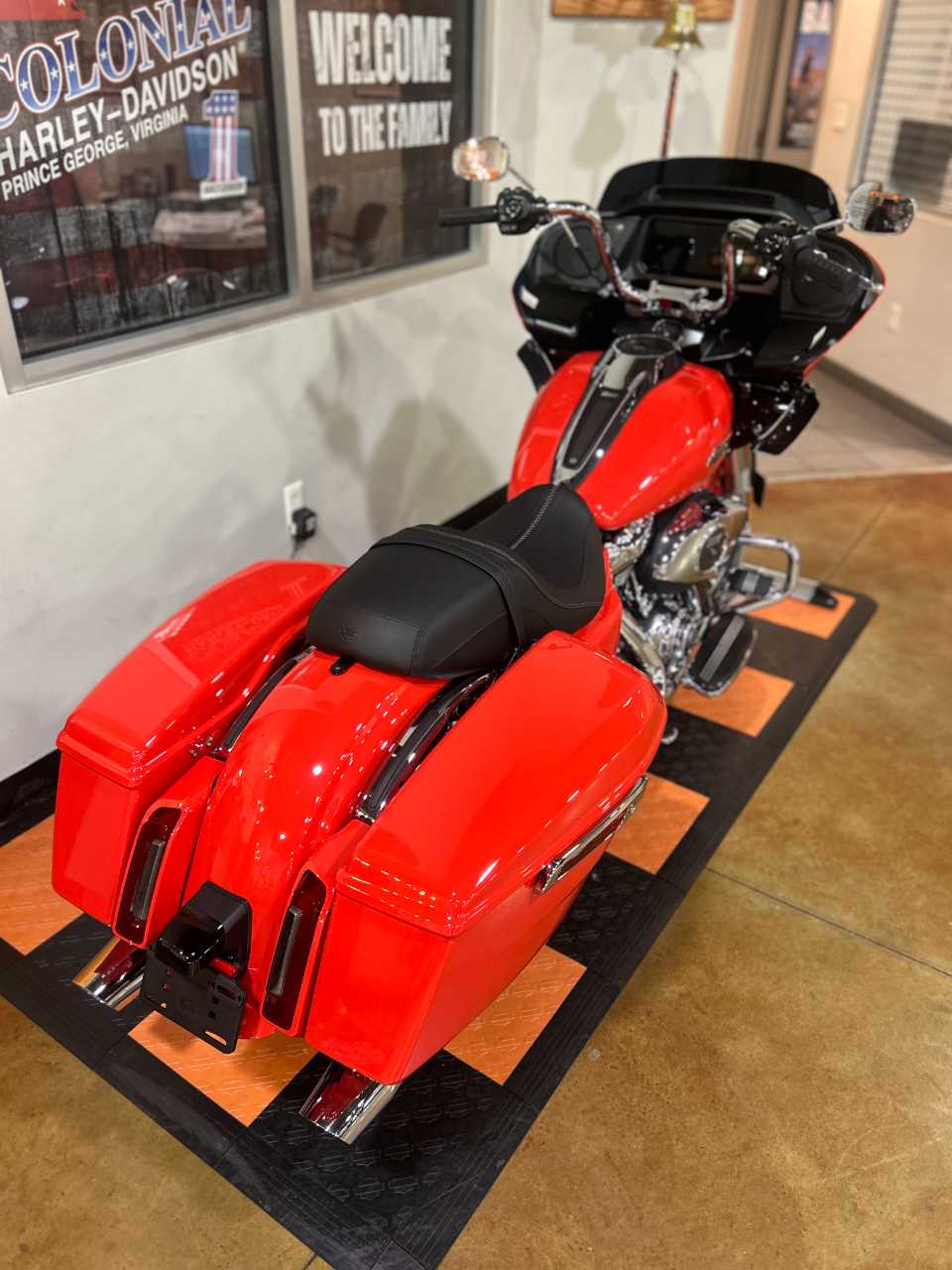

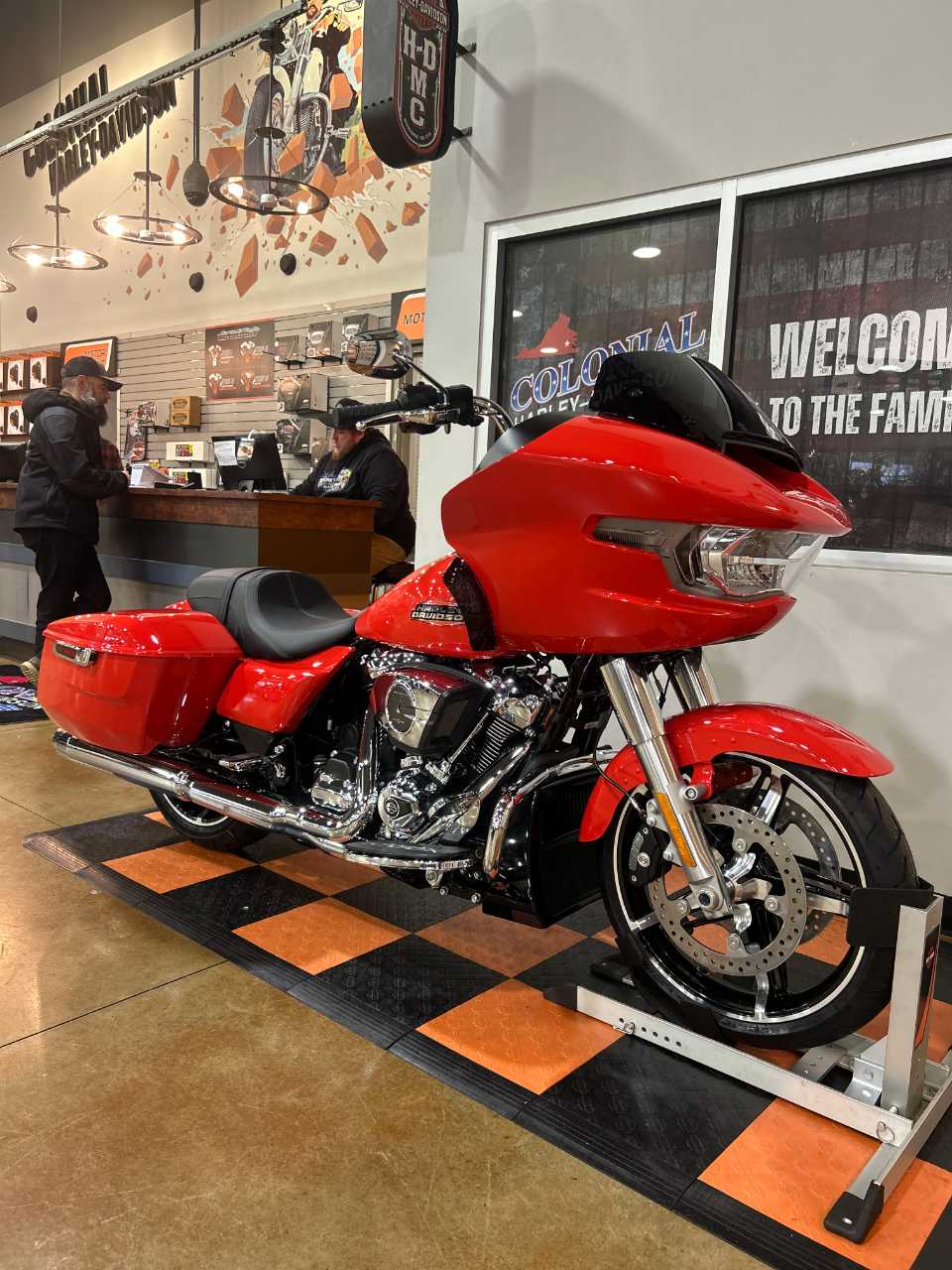

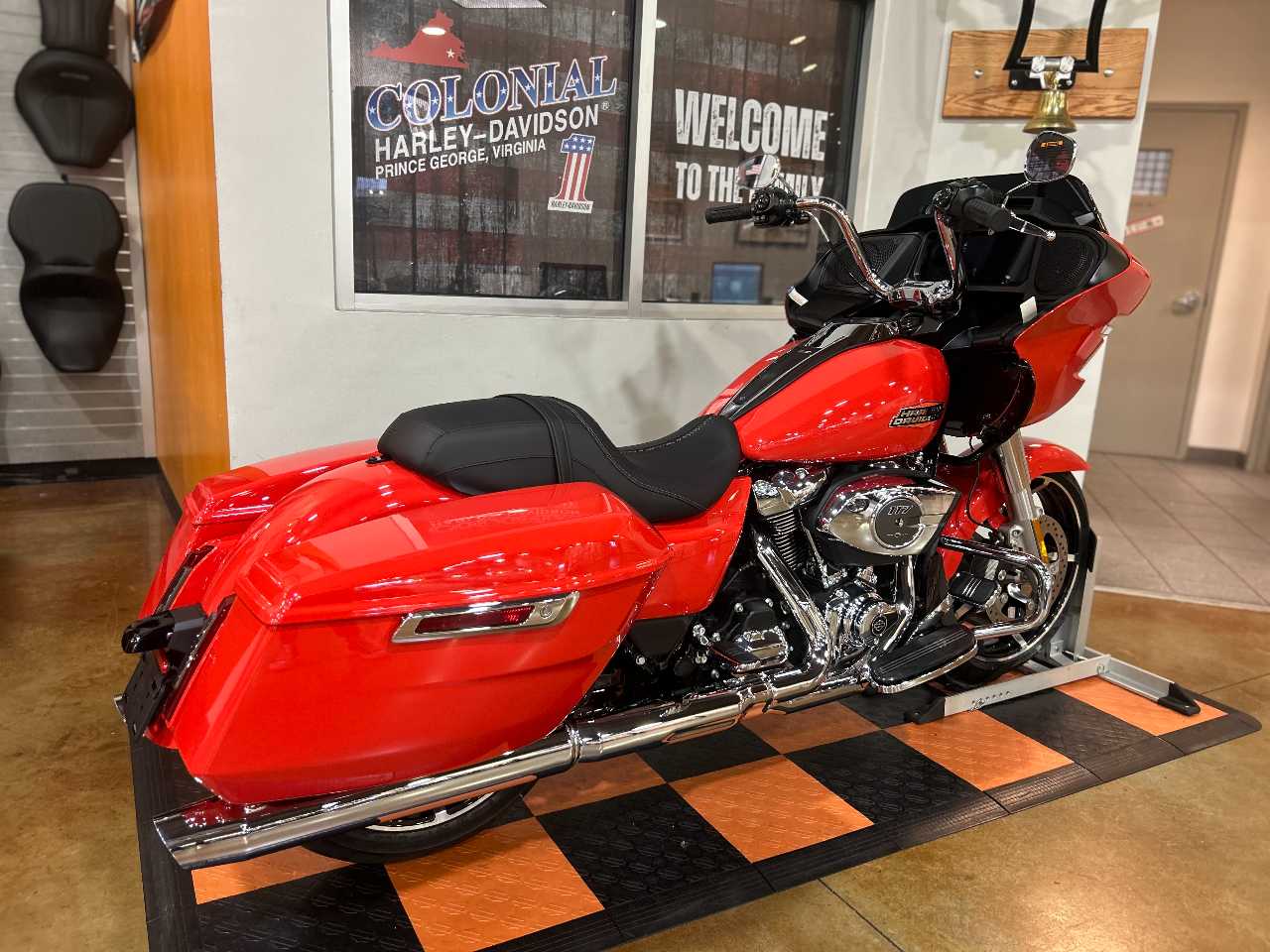

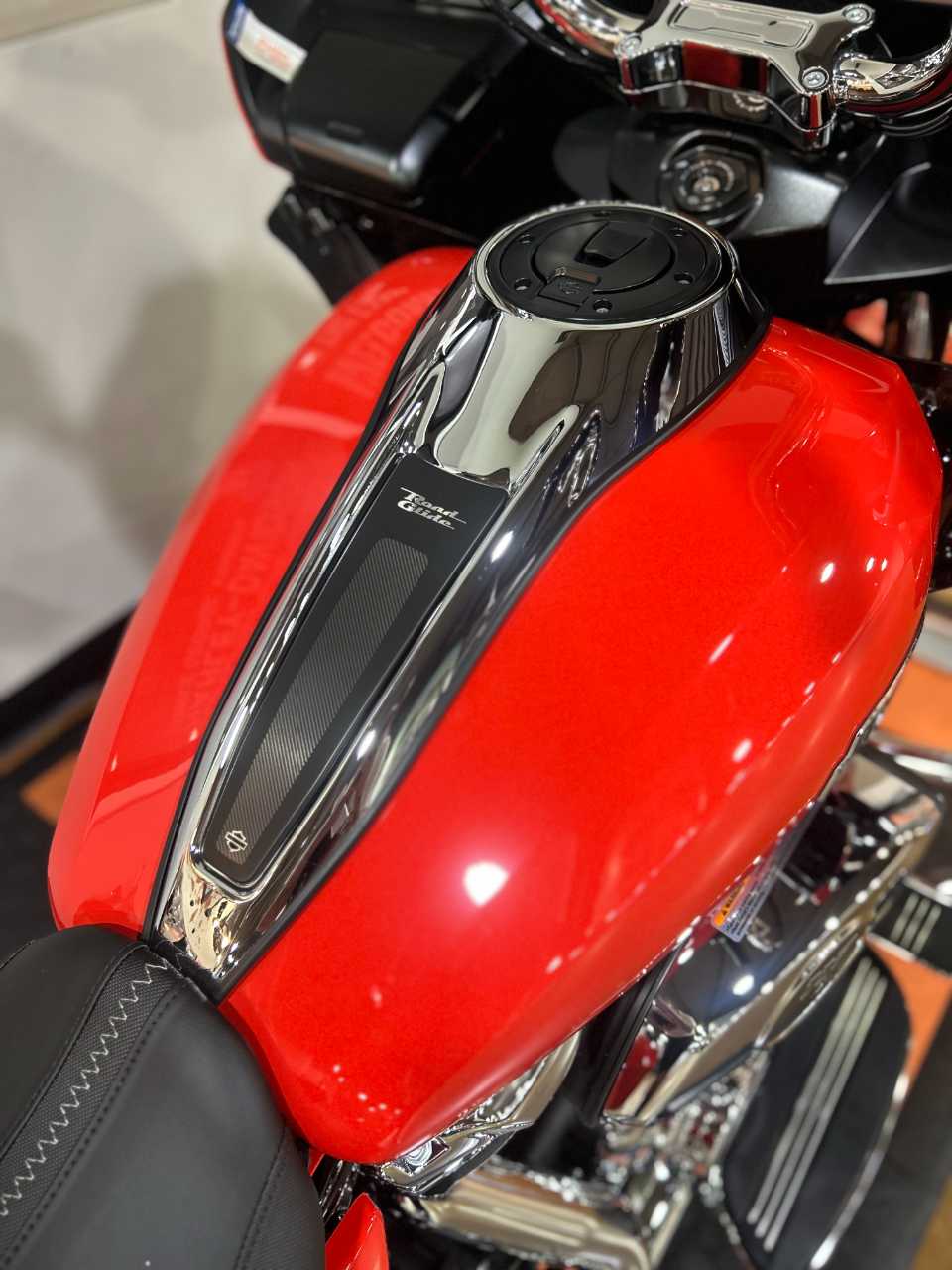

2026 HARLEY-DAVIDSON ROAD GLIDE FLTRX BLOOD ORANGE 84660879

2026 HARLEY-DAVIDSON ROAD GLIDE

Contact for more details

DIMENSIONS
Length94.9 in.
Width37.2 in.
Seat Height, Laden26.6 in.
Ground Clearance5.7 in.
Rake26
Trail6.8 in.
Wheelbase64 in.
Tires, TypeDunlop® Harley-Davidson Series, bias blackwall front and rear
Tires, Front Specification130/60B19 M/C 61H
Tires, Rear Specification180/55B18 M/C 80H
Fuel Capacity6 gal.
Oil Capacity (w/filter)5 qt.
Weight, In Running Order838 lb.
ENGINE
Engine TypeMilwaukee-Eight® 117
Bore x Stroke4.075 in. (103.5 mm) x 4.5 in. (114.3 mm)
Displacement117 cu in.
Compression Ratio10.3 to 1
Fuel SystemElectronic Sequential Port Fuel Injection (ESPFI)
Exhaust2-1-2 dual exhaust with tapered mufflers
CHASSIS
Front Fork49mm (1.9 in) Dual Bending Valve
Rear Shocks3 in. (76.2 mm) Dual Outboard Emulsion with Preload Adjustability
Wheels, TypeCast Aluminum
Brakes, Caliper Type32 mm (1.3 in.), 4-piston fixed dual axially mounted front, and single axially mounted rear
Brakes, Rotor TypeDual floating rotors (front), fixed rotor (rear)
PERFORMANCE
Engine Torque Testing MethodJ1349
Engine Torque130 ft-lbs
Engine Torque (rpm)3,250
Engine Power (Hp/kW)105 HP / 78 kW @ 4600 rpm
Lean Angle, Right (Deg.)32
Lean Angle, Left (Deg.)32
Fuel Economy Testing MethodEstimated City/Hwy
Fuel Economy44 mpg
