2025

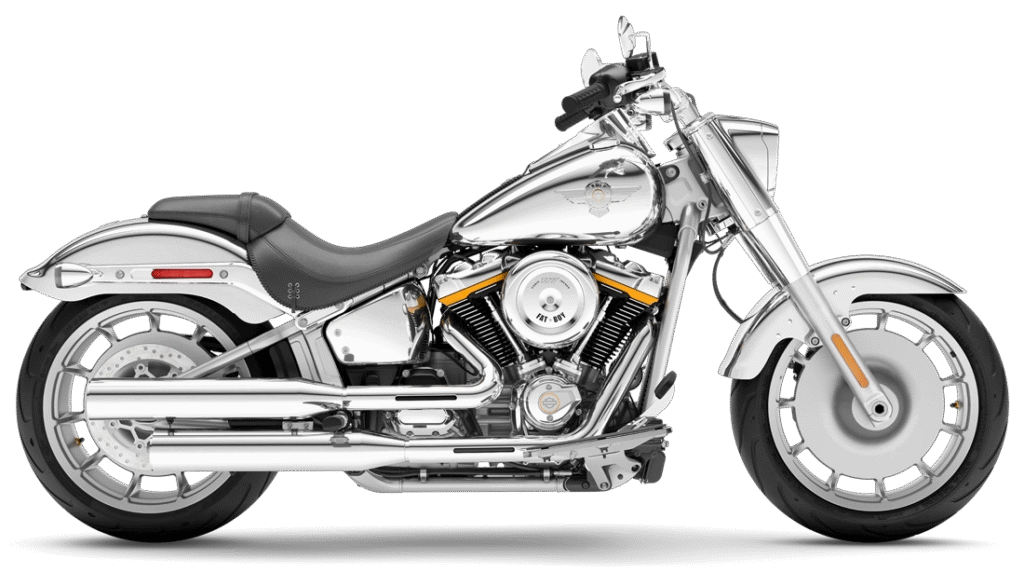

Fat Boy®
Gray Ghost
Disclaimer: Vehicle shown may vary visually by market and may differ from vehicles manufactured and delivered. Availability may vary by market, please see your local dealer for details.
Key Features
Specifications
Pricing
| Special Edition Custom Solid | $25,399.00 |
| California Emissions | $200.00 |
| Freight | $730.00 |
Dimensions
| Special Edition Custom Solid | $25,399.00 |
| California Emissions | $200.00 |
| Freight | $730.00 |
| Length | 93.1 in |
| Seat height, unladen | 26.6 in |
| Ground clearance | 4.9 in |
| Trail | 4.1 in |
| Wheelbase | 65 in |
| Tires, front specifications | 160/60R18,70V,BW |
| Tires, rear specifications | 240/40R18,79V,BW |
| Fuel Capacity | 5 gal |
| Oil capacity | 5 qt. |
| Weight, as shipped | 668 lbs |
| Weight, in running order | 694 lb |
| Tire, type | Michelin® Scorcher 11 front and rear |
Engine
| Engine | Milwaukee-Eight® 117 Custom |
| Bore | 4.1 in |
| Stroke | 4.5 in |
| Displacement | 117.35 in³ |
| Compression ratio | 10.3:1 |
| Fuel system | Electronic Sequential Port Fuel Injection (ESPFI) |
| Exhaust | 2-into-2 staggered; catalyst in muffler |
Performance
| Special Edition Custom Solid | $25,399.00 |
| California Emissions | $200.00 |
| Freight | $730.00 |
| Length | 93.1 in |
| Seat height, unladen | 26.6 in |
| Ground clearance | 4.9 in |
| Trail | 4.1 in |
| Wheelbase | 65 in |
| Tires, front specifications | 160/60R18,70V,BW |
| Tires, rear specifications | 240/40R18,79V,BW |
| Fuel Capacity | 5 gal |
| Oil capacity | 5 qt. |
| Weight, as shipped | 668 lbs |
| Weight, in running order | 694 lb |
| Tire, type | Michelin® Scorcher 11 front and rear |
| Engine | Milwaukee-Eight® 117 Custom |
| Bore | 4.1 in |
| Stroke | 4.5 in |
| Displacement | 117.35 in³ |
| Compression ratio | 10.3:1 |
| Fuel system | Electronic Sequential Port Fuel Injection (ESPFI) |
| Exhaust | 2-into-2 staggered; catalyst in muffler |
| Engine torque testing method | J1349 |
| Engine torque | 122.4 ft-lb |
| Engine torque (RPM) | 3000 |
| Horsepower | 101 HP / 75 kW @ 4800 rpm |
| Lean angle, right (deg.) | 25.6 |
| Lean angle, left (deg.) | 25.6 |
| Fuel economy testing method | Estimated City/Hwy |
| Fuel economy | 49 mpg (4.8 l/100 km) |
Powertrain
| Primary drive | Chain, 34/46 ratio |
| Gear ratios (overall) 1st | 9.311 |
| Gear ratios (overall) 2nd | 6.454 |
| Gear ratios (overall) 3rd | 4.793 |
| Gear ratios (overall) 4th | 3.882 |
| Gear ratios (overall) 5th | 3.307 |
| Gear Ratios (overall) 6th | 2.79 |
Chassis
| Front fork | Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; “beer can” covers |
| Rear shocks | Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment |
| Wheels, front type | Machined, Lakester cast aluminum |
| Wheels, rear type | Machined, Lakester cast aluminum |
| Brakes, type | Front and rear silver, Split 7-spoke floating rotors |
| Brakes, caliper type | 4-piston fixed front and 2-piston floating rear |
Color Options
Reflection
