WAKE UP YOUR SENSES. The H-D® Cruiser models are where authentic heritage meets modern technology for power, style, and the unadulterated riding experience - around town or along country roads. The original fat custom icon, now with bright chrome finishes. This 2024 bike is a muscular modern chopper that turns stoplights into drag strips. Riders looking for head-turning style and performance will enjoy blasting through the city and block-beating passing power. Dripping with chrome, the Harley-Davidson Breakout 117 is a raked-out cruiser that packs Milwaukee-Eight™ 117 V-Twin muscle. HIGHLIGHTS: • Stretched riding position. • Forward foot controls. • Passenger seat. MILWAUKEE-EIGHT® 117 ENGINE This air- and oil-cooled engine is the pinnacle of torque and displacement in factory-installed, regular-production Harley-Davidson® powertrain. HEAVY BREATHER High-performance Heavy Breather intake with forward-facing exposed filter element flows more air into the engine. CHROME APPEAL Polished chrome adorns everything from the fender supports, side covers, and muffler shields, to the turn signals, mirrors, and Heavy Breather intake. WHEELS The 21-inch front and 18-inch rear cast aluminum wheels have 26 spokes with black finishes and machined details. TWO-INTO-TWO EXHAUST High-performance, offset shotgun exhaust improves mid-range torque and produces a strong, stirring note. CHASSIS Softail chassis reduces weight and improves rigidity while maintaining the classic look of a hard tail. COLOR OPTIONS: • Billiard Gray • Vivid Black • White Onyx Pearl • Blue Burst • Alpine Green Vehicles depicted may differ from vehicles manufactured and delivered. Specifications and prices listed may differ from specifications and prices of vehicles manufactured and delivered. All product descriptions (including depictions, specifications, dimensions, measurements, ratings and competitive comparisons) are based on available information at the time of publication. Although such descriptions are believed correct, errors and changes can occur and complete accuracy cannot be guaranteed. Harley-Davidson® may make changes at any time to prices and specifications, and may change or discontinue models, without notice and without incurring any obligation. Please check with your dealer for complete product details and the latest information.

Specifications

  • Dimensions
    add remove
    • Length:
      93.3 in
    • Seat height, unladen:
      26.2 in
    • Ground clearance:
      4.5 in
    • Rake (steering head):
      34
    • Trail:
      5.7 in
    • Wheelbase:
      66.7 in
    • Tires, front specifications:
      130/60B21,63H,BW
    • Tires, rear specifications:
      240/40R18,79V,BW
    • Fuel Capacity:
      5.0 gal
    • Oil capacity:
      5 qt.
    • Weight, as shipped:
      653 lbs
    • Weight, in running order:
      683 lb
    • Tire, type:
      Michelin® Scorcher® "11" front and rear
  • Engine
    add remove
    • Engine:
      Milwaukee-Eight™ 117
    • Bore:
      4.1 in
    • Stroke:
      4.5 in
    • Displacement:
      117.35 in3
    • Compression ratio:
      10.2:1
    • Fuel system:
      Electronic Sequential Port Fuel Injection (ESPFI)
    • Exhaust:
      2-into-2 staggered; catalyst in muffler
  • Performance
    add remove
    • Engine torque testing method:
      EC 134/2014
    • Engine torque:
      123.2 ft-lb
    • Engine torque (RPM):
      3500
    • Horsepower:
      101 HP / 75 kW @ 4750 rpm
    • Lean angle, right (deg.):
      26.8
    • Lean angle, left (deg.):
      26.8
    • Fuel economy testing method:
      EU 134/2014
    • Fuel economy:
      47 mpg (5 l/100 km)
    • CO2 emissions testing method:
      EU 134/2014
    • CO2 emissions :
      135 g/km CO2
  • Powertrain
    add remove
    • Primary drive:
      Chain, 34/46 ratio
    • Gear ratios (overall) 1st:
      9.311
    • Gear ratios (overall) 2nd:
      6.454
    • Gear ratios (overall) 3rd:
      4.793
    • Gear ratios (overall) 4th:
      3.882
    • Gear ratios (overall) 5th:
      3.307
    • Gear Ratios (overall) 6th:
      2.79
  • Chassis
    add remove
    • Front fork:
      Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
    • Rear shocks:
      Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
    • Wheels, front type:
      Gloss black, 26-spoke cast aluminum
    • Wheels, rear type:
      Gloss black, 26-spoke cast aluminum
    • Brakes, type:
      Front and rear black, Split 7-spoke floating rotors
    • Brakes, caliper type:
      4-piston fixed front and 2-piston floating rear
  • Electric
    add remove
    • Lights (as per country regulation), indicator:
      All LED, low beam, high beam and signature position lamp; Bullet-style, multi-function LED stop/tail/turn signals; Incandescent bullets
    • Gauges:
      2.14-inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

Request Details

Required
Required
Required
Required
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

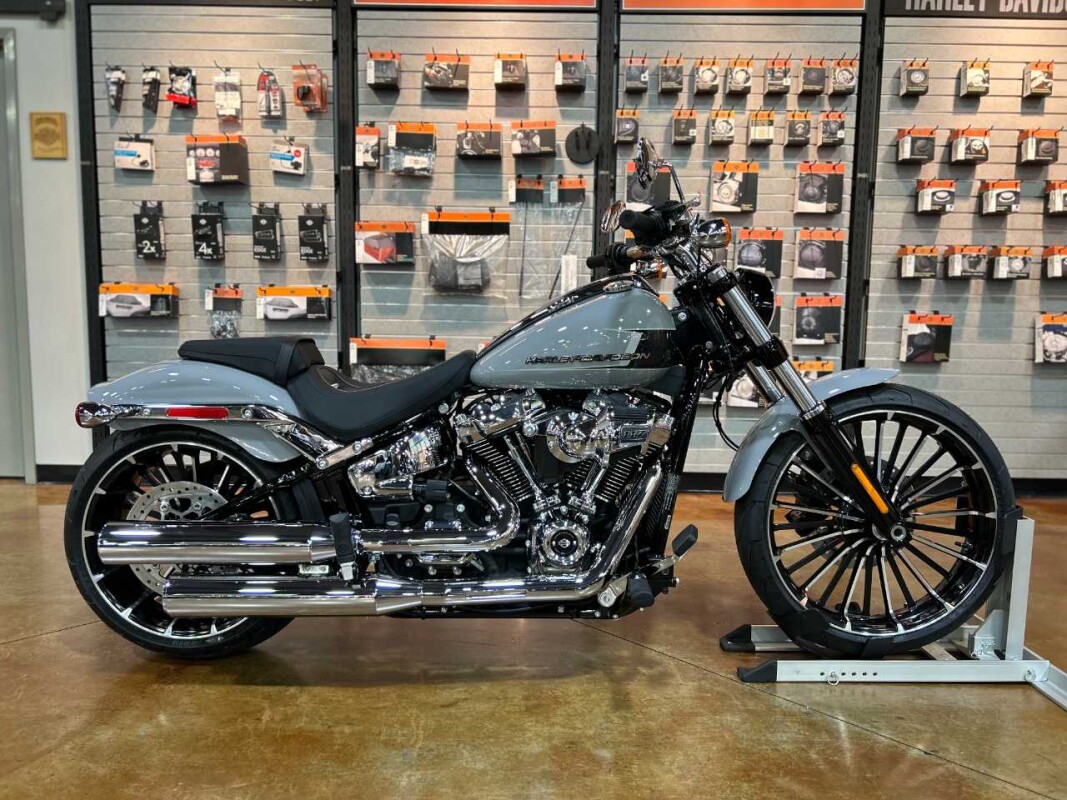

FXBR 2024 Breakout 117

84500232
1HD1YEZ16RB048883
Harley-Davidson®
Cruiser
New
2024
18 mi
Billiard Gray
